Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
Description of Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor adopts high precision temperature humidity integrated chip. Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor is measured by using diode temperature sensing p-n junction, and the forward step-down changes with temperature under constant current. Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor is measured by humidity sensitive capacitance, which changes with the change of humidity. The Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor are compensated for each other, and then amplified into standard digital or analog signals of relative humidity and temperature through amplification circuit.
Parameter of Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
| Item | Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor |
| Type | Plug in type |
| Mount | Bottom mount or side mount |
| Temperature Range | -40~125C |
| Humidity range | 0-100%RH |
| Accuracy | 1.0% FS |
| Output signal | 4-20mA, 0-10V, RS485 modbus |
| Supply voltage | standard 24VDC, 12VDC~36VDC |
| Display | LCD or not display |
| Material | ABS plastic |
| Protection | IP65 |
| Application | Clean and dry air |
| Operating temperature | -20-80C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Temperature drift | 0.02% FS / ° C |
| Long-term stability | 0.2% FS / Year |

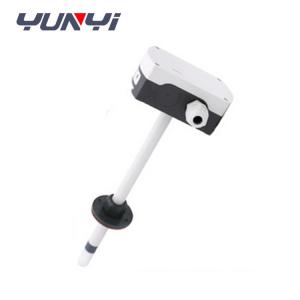

Detailed picture of Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
Feature Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
Device parameters are configured through the network port, which is simple and convenient
Temperature and humidity acquisition frequency 2S/time, data upload frequency 5S~10000 S/time can be set
Built-in alarm function, can set the upper and lower limit of alarm and return difference value
With 2 normally open contacts, which can be arbitrarily associated with alarm output
Application of Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor
Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor is widely used in communication rooms, warehouse buildings and automatic control and other places that require temperature monitoring. Air Pressure Transducer Sensor Data Logger RS485 Temperature Humidity Wireless Sensor adopts standard industrial interface 4~20mA/0~10V/0~5V analog signal output, which can be connected to on-site digital display meter, PLC, frequency converter, industrial control host and other equipment, safe and reliable, and easy to install.
