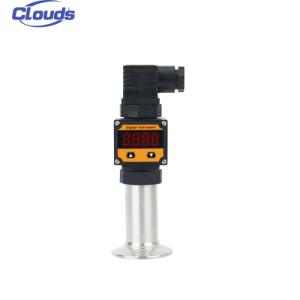

The YD33 LED/LCD Indicator Pressure Transmitter
The YD33 LED/LCD Indicator Pressure Transmitter is a high-precision instrument designed for real-time pressure monitoring and display. It integrates a high-accuracy sensor with a clear LED or LCD screen, providing both analog signal output and local visual reading. Ideal for applications requiring direct pressure visualization, it features robust construction, excellent stability, and compatibility with various media. Its user-friendly design simplifies installation and operation, making it suitable for harsh industrial environments.
| Parameter | Specification |
|---|---|
| Model | YD33 Series |
| Pressure Range | 0-100 MPa (customizable) |
| Accuracy | ±0.5% F.S. (standard); ±0.25% F.S. (optional) |
| Display | LED or LCD (backlit) |
| Output Signal | 4-20mA, 0-10V, RS485 (configurable) |
| Power Supply | 24V DC (12-36V DC range) |
| Process Connection | M20×1.5, G½", NPT ½" (optional) |
| Media Compatibility | Stainless Steel 316L (standard) |
| Operating Temperature | -20°C to +85°C |
| Protection Rating | IP65 (front panel); IP64 (housing) |
