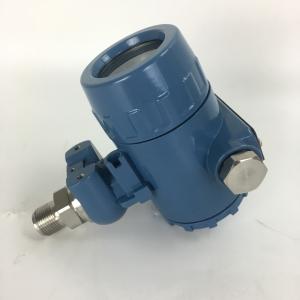

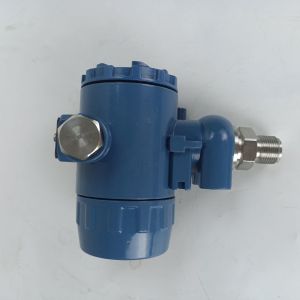

This high-reliability pressure transmitter integrates international advanced technology to deliver superior performance for demanding industrial applications.

Premium Sensor Core: Utilizes an original imported quartz film pressure sensor for high accuracy.
Rigorous Manufacturing: Assembled and tested under standardized processes to ensure quality and consistency.
Proven Performance: Meets the technical specifications of leading imported products, offering reliable compatibility.
Flexible Configuration: (Note: Can be equipped with silicon piezoresistive or ceramic cores to suit different occasions).

Specification Smart Water Pressure Sensor

Through current	Rated range: 4-20mA Limit range: 24mA
Temperature range	Rated operating range: 0-40℃ Limit working range: -20~50℃
Relative humidity	20%~80%RH
Display range	-1999~1999
Accuracy grade	±0.2%FS+1 word
Display mode	black LCD characters, character height 8.5mm×character width 4mm, backlight can be added
Panel size	diameter 38mm×16mm height
Chassis size	diameter 48mm×2mm thickness
Fixing method	screw to fix the chassis

Features Smart Water Pressure Sensor

Category	Feature	Specification
Measurement Range	Pressure	-0.1 ~ 1.0 MPa / 100 MPa / 300 MPa (Optional)
	Temperature	-60°C / -45°C ~ +85°C / +125°C / 150°C / 300°C (Optional)
	Compatible Media	Various gases, liquids, and steam for stainless steel & titanium alloy
Output & Communication	Options	Analog 4~20 mA or 1~10 V output with HART / Modbus 485
Design & Construction	Diaphragm	Integrated, non-oil-filled, resistant to vibration and impact
	Sealing Method	End face seal or double O-ring seal
	Marking	Permanent laser marking for strong recognition
	Expandability	Adjustable range; optional analog, switching, or digital communication

Product Dimension Drawing
