Hot Sale high Accuracy Mini Digital Pressure Gauge Bar Pressure Meter Manometer Diaphragm Pressure Gauge Sensor
Description
The YTP-100/150ML threaded diaphragm pressure gauge features an indirect measurement structure, designed for measuring the pressure of liquid, gas, or granular solid media. It is particularly suitable for applications involving viscous, crystallizing, corrosive, or high-temperature media.
Key Features:
Indirect measurement structure
Suitable for liquids, gases, and granular solids
Ideal for viscous, crystallizing, or corrosive media
High temperature compatibility
Threaded connection design

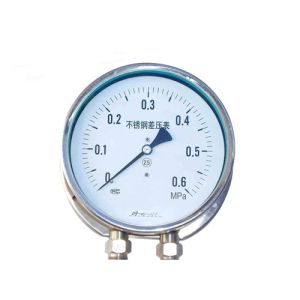

Detailed image
Specification
| Accuracy class | 1.6 ; 2.5 1.0 |
| Measuring range (Mpa) | ~ 0.1 ~ 0 to 0 ~ 60; 0 ~ 160MPa |
| Diaphragm material | 0Crl7Nil2Mo2 (316); Monel (Cu30Ni70); Hastelloy (H276C); tantalum (Ta) and fluorine plastic (F4). |
| Flange material | stainless steel 0Crl7Nil2M02 (316); plastic lined stainless steel (316 + F4) |
| Sealing gasket material | nitrile rubber; fluorine rubber; silicone rubber and fluorine plastic. |
| Thread flange connection size | M20 * 1.5 (G3 / 8 "G1 / 2") or custom |
| Temperature | Ambient temperature - 25 ~ +55 °C measured medium temperature -25 ~ +55 °C;High temperature type:0-600℃ |
| Working pressure static load | with a scale value of 3/4 Alternating load: The scale value of 2/3 |
| DN SIZE | 60/100/150mm |
Features & Applications
Designed for measuring highly corrosive, high-temperature, and high-viscosity media
Suitable for fluids prone to crystallization or solidification
Ideal for media containing solid particles or suspended matter
Prevents direct contact of aggressive media with the gauge mechanism
Easy-to-clean design prevents sediment accumulation
Eliminates clogging risks in demanding process environments
Typical Applications:
Chemical processing systems
Petrochemical pipelines
Pharmaceutical production
Food processing equipment
Waste treatment facilities
